Gravity Roller Loaders

Key Advantages

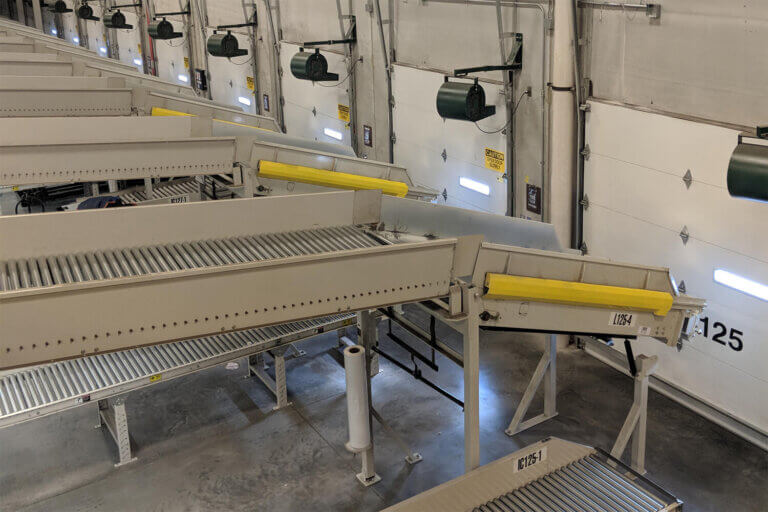

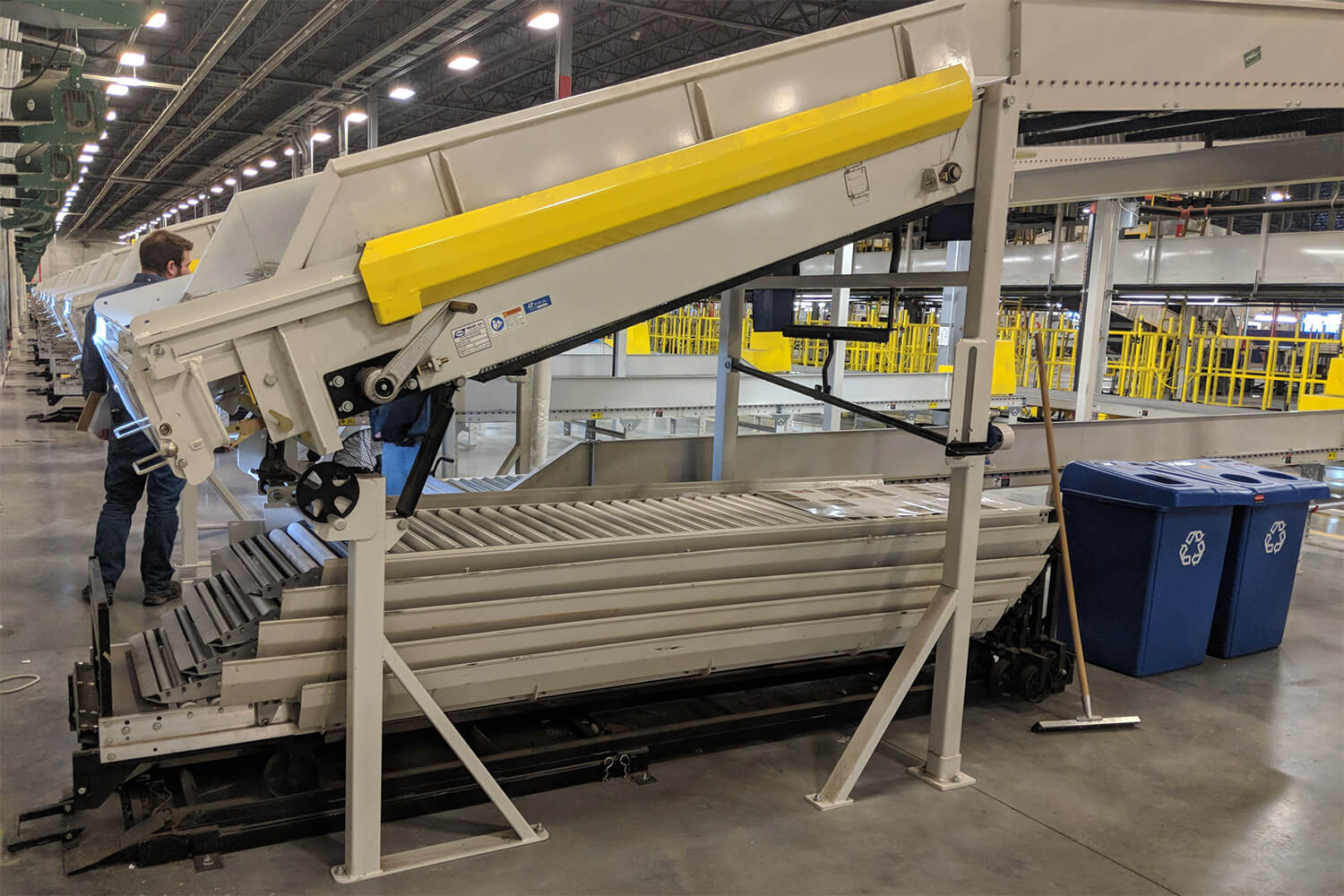

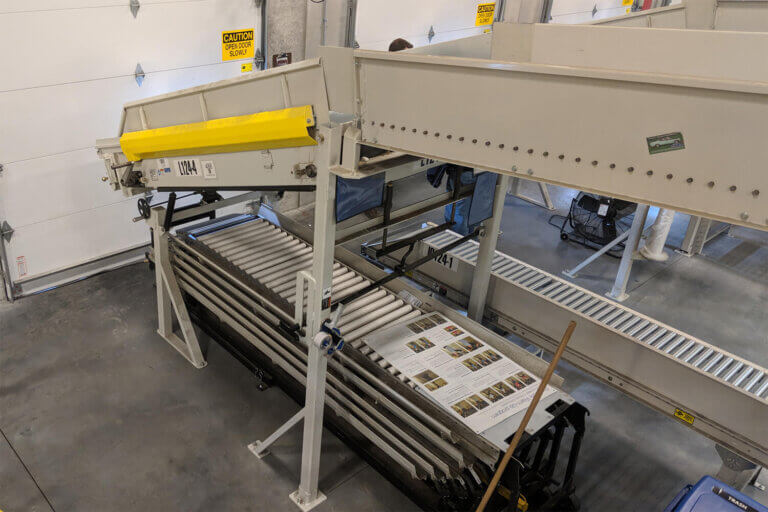

Conveyor designed to optimize available dock floor space and provide maximum flexibility for loading operations of flat floor trucks, trailers and freight containers up to 53 ft. Compact, nesting roller conveyor is manually extended to adjust to fit application and leverages natural gravity flow to ease package movement and improve volume throughput.

Customizable Configuration

Roller conveyor configuration from 3-stages up to 7-stages

Gravity Flow

Roller conveyor provides 1.5-degree slope for natural gravity flow

Space-Saving Design

Retracts to 9 ft. when not in use while extending up to 50 ft., maximizing dock space efficiency

CONNECT WITH OUR EXPERTS

Get Started

Specifications

Retractable Length	9 ft.
Extendable Length	50 ft.
Load Capacity	50 lbs./ft.
Rollers	1.94 in. diameter; PVC
Operation	Manual extension
Stages	3–7

Additional Options

Option 1	Option to integrate with a single-stage belted conveyor to feed the gravity roller loader and increase transfer rates
Option 2	Roller conveyor configuration from 3-stage up to 7-stage
