Open Cart
Key Advantages
Heavy-duty open carts designed for transporting large loads with enhanced maneuverability, durability, and safety features. Built with reinforced steel construction for rigorous daily use in industrial environments.
CONNECT WITH OUR EXPERTS
Specifications
| Capacity | 8,000 lbs. (3,629 kg) and 5,000 lbs. (2,268 kg) for a light-duty model |
| Weight | 1,240 lbs. (562 kg) and 1,100 lbs. (499 kg) for a light-duty model |
| Running Gear | Rigid mount or torsion axle |
| Track Width | 52.75 in. (1.3 m) |
| Rims | 9-gauge, 5-bolt, 4.5 in. BC, 2-piece demountable |

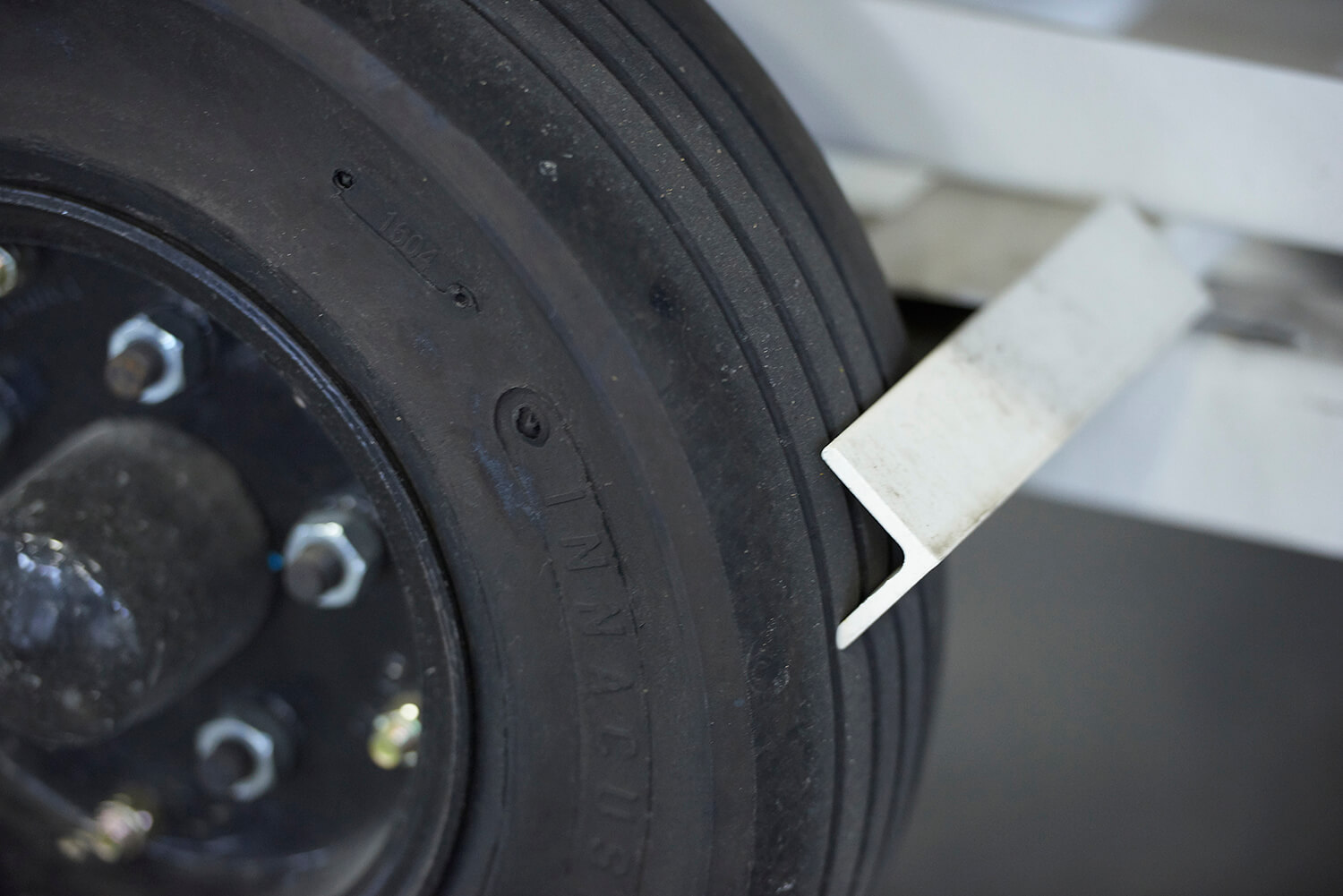

| Tires | Solid in 4 x 8 in. (10 x 20 cm) and 16 in. (41 cm) diameter or 5 x 8 in. (13 x 20 cm) and 18 in. (46 cm) diameter sizes |
| Wheel Spindles | 1-5/8 in. (4 cm) diameter replaceable |
| Hubs | 1.375 in. (3 cm) diameter sealed, tapered roller bearings |
| Body Panels | 16-gauge |
| Floor Panels | 12-gauge |
| King Pin | 2 in. (5 cm) diameter (1-1/2 in. [4 cm] in light-duty cart) stress-proof with sealed bearings |

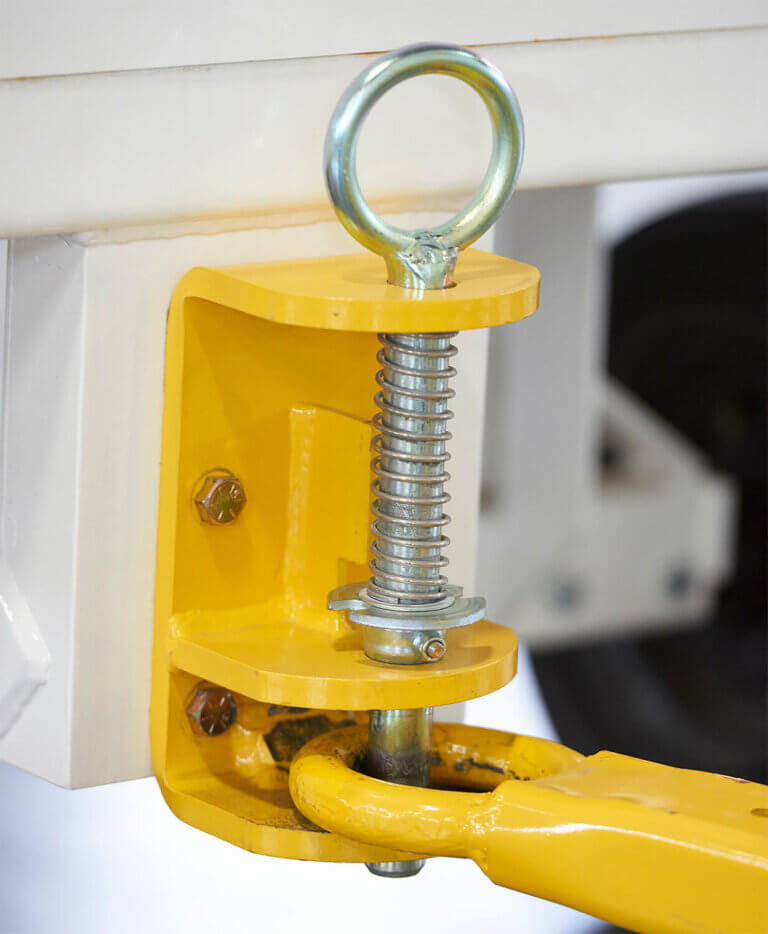

| Rear Hitch | Spring-loaded E-hitch; additional options available |
| Reflectors | Eight 3 in. (8 cm) diameter, amber on front and red on rear; additional options available |
Additional Options
| Option 1 | Rigid mounted or torsion axle running gear styles offer choices to suit each environment |
| Option 2 | End and side panels can be fixed or removable, depending on the best option for your site |
| Option 3 | Optional tarps and holders cover the cart for protection from the weather |
| Option 4 | Hot-dip galvanizing provides additional corrosion resistance |
