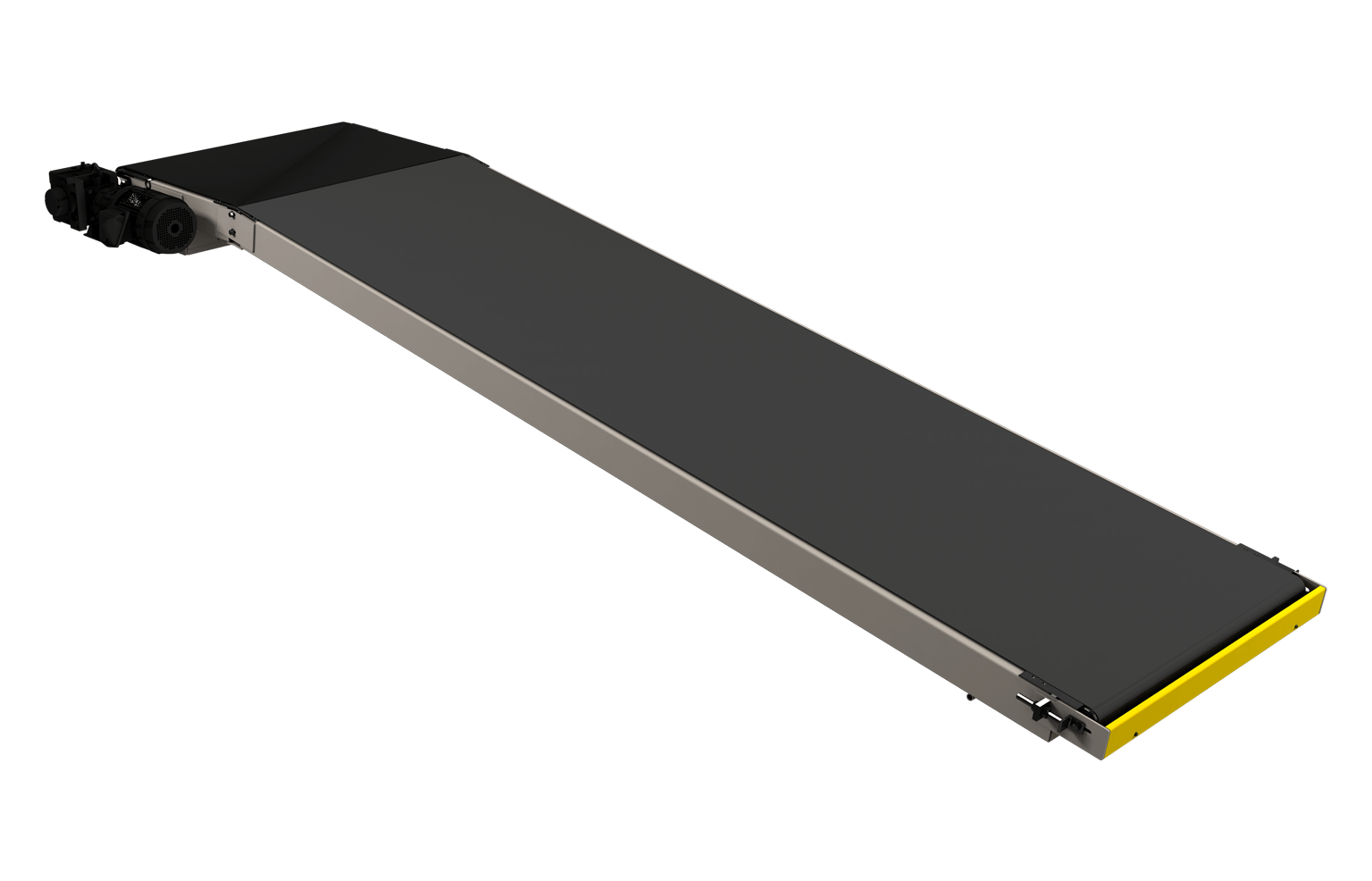

Lateral Feed Conveyor
Key Advantages
Rugged, heavy duty belt conveyor, ideal for transition between load or unload equipment and primary conveyor or sorting operations. Customized lengths and widths to adapt to various material handling systems, with weld-up assembly construction.
CONNECT WITH OUR EXPERTS
Specifications
| Length | Customizable up to 14 ft. or 25 ft. depending on model |
| Belt Width | 15, 30, 32, 36, 42, 48 in. |
| Belt Direction | Load, unload, bi-directional |
| Load Capacity | 50 lbs./linear ft. |
| Rated Speed | 20–200 fpm |
| Structure | Weld-up |
Additional Options
| Option 1 | Belt drive options up to 3 hp |
| Option 2 | Rough, semi-rough or smooth belt top surface options. |
| Option 3 | Customizable elevations, inclines and slopes |
| Option 4 | Customizable to any length up to 14ft. or 25 ft. depending on model |
| Option 5 | Optional carrying rollers and/or underside rollers with 10 ft. slider bed option |
