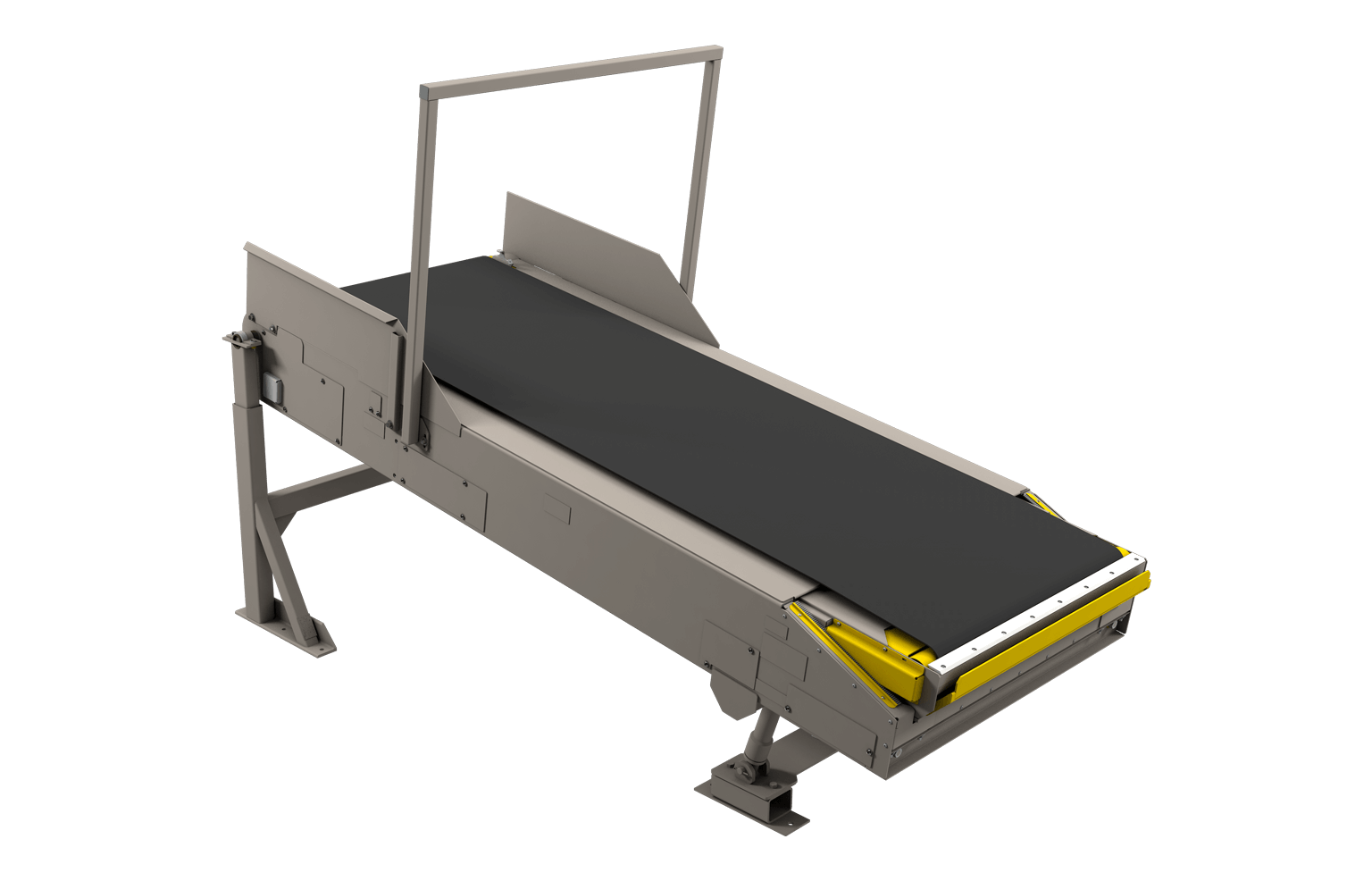

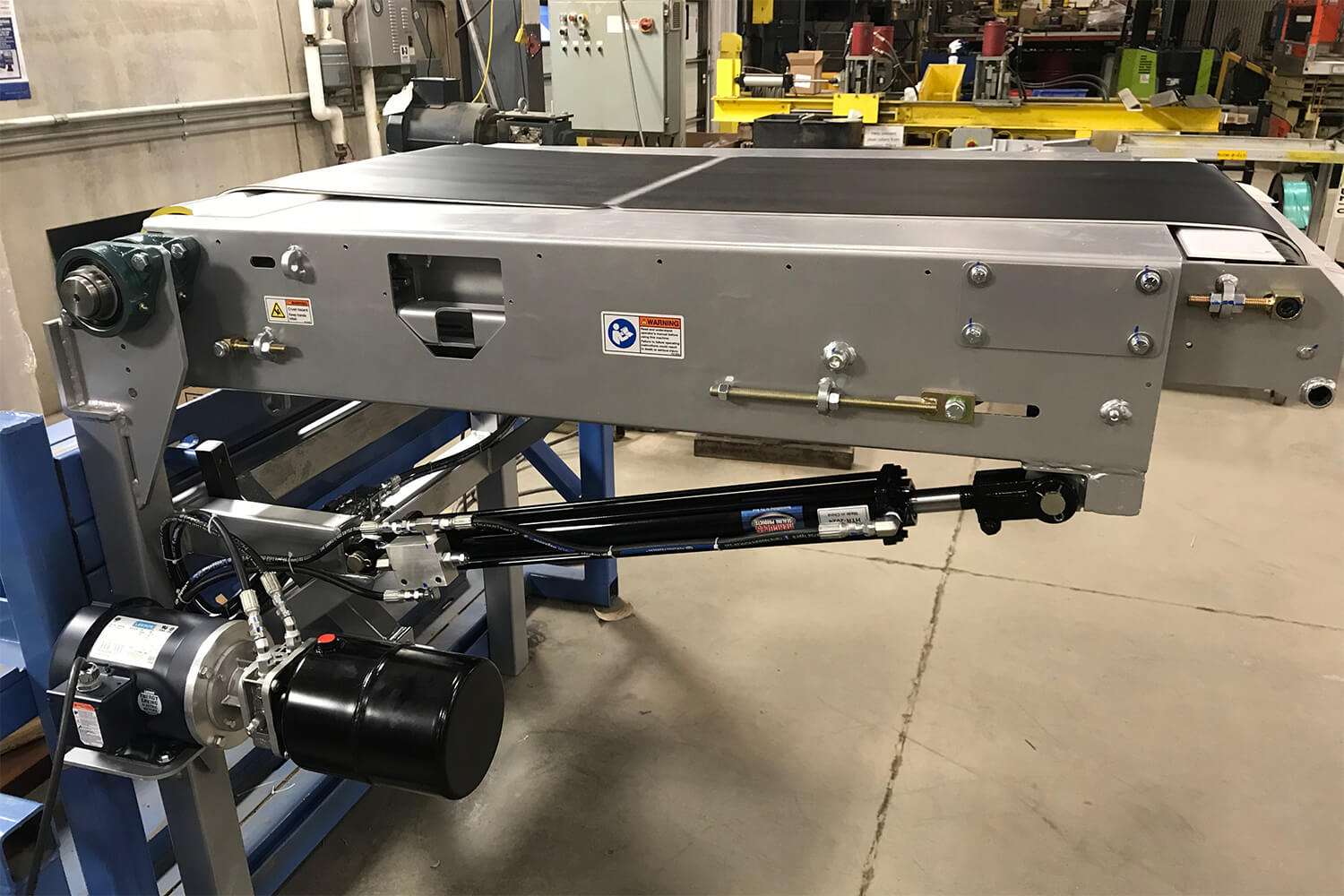

Single-Stage Extendable Conveyor

Key Advantages

Belt-drive conveyor for operations with more limited load/unload space and shorter reach requirements, designed to bridge the gap from dock to trailer or other vehicles and accelerate package transfer rates. Manual extension or retraction to allow boom to stop in position at any length up to the maximum extension.

Motorized Pulley

1 HP main motorized pulley, variable speed option when wired to a VFD, bi-directional belt

Hand Crank Boom

Hand crank boom for extension and retraction, with option to add power movement

Adjustable Height

Height adjusts manually to align with package wall elevation change in trailer

CONNECT WITH OUR EXPERTS

Get Started

Specifications

Retractable Length	9 ft.
Extendable Length	15 ft. 6 in.
Belt Width	33–39 in.
Belt Direction	Load, unload or bi-directional
Belt Speed	Optional speeds up to 100 fpm
Operation	Hand crank boom extension
Boom End Elevation	Hand crank raise/lower, elevations up to 60 in. available
Load Capacity	50 lbs./ft.
